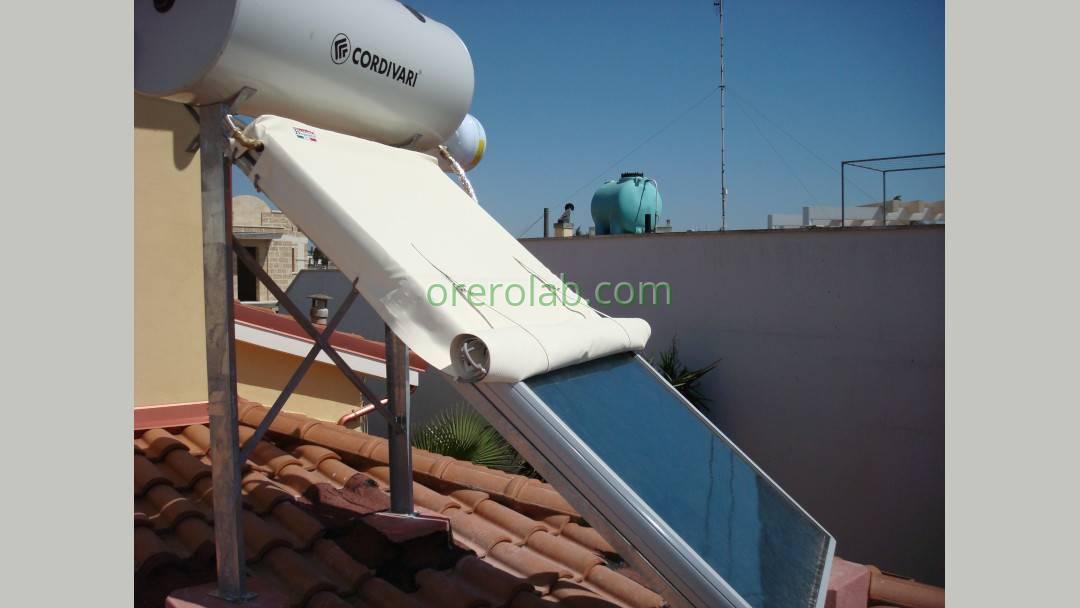

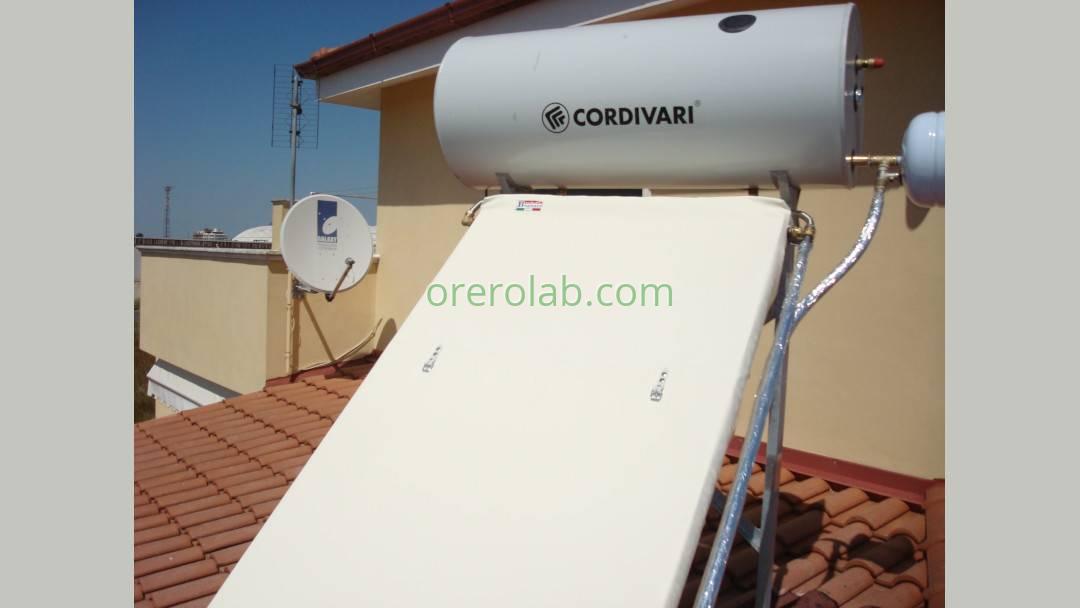

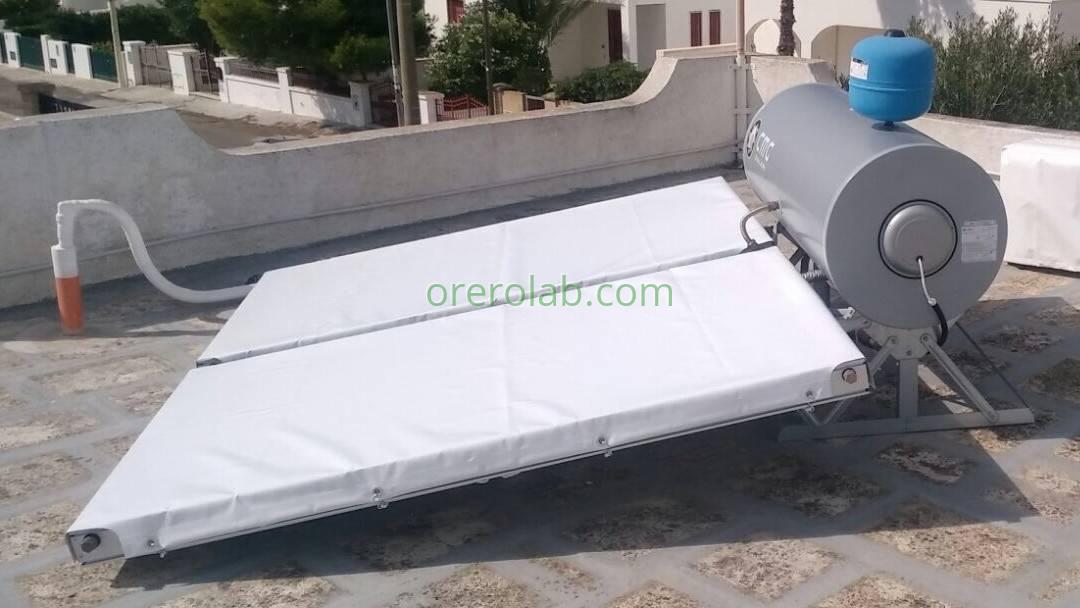

Solar water heater system protection cover made of flame retardant block out PVC with bungee cord binding

We can make solar water heater system protection cover, either for winter protection of heaters installed on homes for summer use only, or for total or partial shielding of heaters located in areas of high solar impact, where it is necessary to mitigate the production of hot water or protect the system from excessive temperature.

Our solar water heater system protection cover are made of 720 gr/sqm Precontraint PVC, with total shielding by means of internal filter for total block out, class 2 Italian outdoor fireproof cerification (England/France: M2; Germany: B1), U.V. resistant.

The available colors for this PVC are white and vanilla, the latter being more suitable in homes located in rural locations, where wind-blown soil is less visible once laid on the roof itself.

The standard mode of production is with perimeter drop rib equipped with aluminum eyelets on the edges and strong elastic cords with hooks. Application is quite simple, and to reduce/enlarge the part of the panel exposed to the sun, simply unhook the elastics related to the relevant part unwind/roll the sheet and rehook the elastics.

The PVC used to make these solar water heater system protection cover is among the top commercially available, if well maintained, even with washing 1/2 times a year it can safely last more than 10 years.

Solar water heater system protection cover are not available ready-made, given the many existing solar water heater sizes on the market, we only make to specific sizes provided by the Customer.

Elatic ropes already including hooks are always provided.

The processing is carried out by radio frequency welding.

The cost of realization is a function of size, for example, a panel cover having dimensions of 102x194x7 cm (L1xL2xH) has a cost of Euro 102,00 including VAT, excluding shipping.

Technical Specifications
PVC coated 1100 Dtex HT polyester. FERRARI PRECONTRAINT® coating technology.
Yarn: warp polyester 1100 Dtex; weft polyester 1100 Dtex
Coating: PVC
Costruction: warp 10 yarns/cm; weft 10 yarns/cm
Weight: ca 730 gr/sqm
Flammability: M2, B1 (cl 2 according to Italian standards RF 1/57 and 3/77)
Finish: shiny laquered on both sides
Breaking strenght (DIN 53354): warp ca 250 DaN/5 cm; weft ca 220 DaN/5 cm
Tear strength (DIN 53363): warp ca 20 DaN; weft ca 18 DaN
Light Fastness (DIN 53388): level 7/8
Temperature resistance: +70°
Temperature resistance: -30°
Adhesion: ca 8 DaN/5cm
Waterproof
Block Out
Black inner coating completely blocks out the passage of light, see images in gallery
Smooth stain-resistant coating
100% Recyclable TEXYLOOP®
Available colors: White or Vanilla

If you have a solar water heater system and would like a quote for a protection cover, please contact us via the following info form.
In the info form, enter the measurements in centimeters related to: L1, L2 and H, as indicated in Info Card 1.
